Data tree sample

The sample demostrates how to create and use a persistent hierarchical data structure. The serializer object (instance of the wxXmlSerializer class) holds data objects (instances of xsSerializable class ) reflecting a current structure of the tree contols' items. The serializer's content is stored in a configuration file so the tree control's content can be reconstructed from this information at the application's start up.

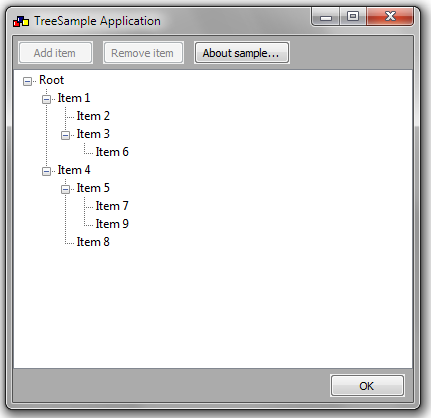

Screenshot of the application:


A content of the output XML file corresponding to the tree structure on the screenshot above:

<?xml version="1.0" encoding="utf-8"?>
<tree owner="TreeSampleApp" version="1.0.0">
    <object type="SerializableObject">
        <property name="id" type="long">1</property>
        <property name="item_name" type="string">Item 1</property>
        <object type="SerializableObject">
            <property name="id" type="long">2</property>
            <property name="item_name" type="string">Item 2</property>
        </object>
        <object type="SerializableObject">
            <property name="id" type="long">3</property>
            <property name="item_name" type="string">Item 3</property>
            <object type="SerializableObject">
                <property name="id" type="long">6</property>
                <property name="item_name" type="string">Item 6</property>
            </object>
        </object>
    </object>
    <object type="SerializableObject">
        <property name="id" type="long">4</property>
        <property name="item_name" type="string">Item 4</property>
        <object type="SerializableObject">
            <property name="id" type="long">5</property>
            <property name="item_name" type="string">Item 5</property>
            <object type="SerializableObject">
                <property name="id" type="long">7</property>
                <property name="item_name" type="string">Item 7</property>
            </object>
            <object type="SerializableObject">
                <property name="id" type="long">9</property>
                <property name="item_name" type="string">Item 9</property>
            </object>
        </object>
        <object type="SerializableObject">
            <property name="id" type="long">8</property>
            <property name="item_name" type="string">Item 8</property>
        </object>
    </object>
</tree>


The sample consists of two classes:

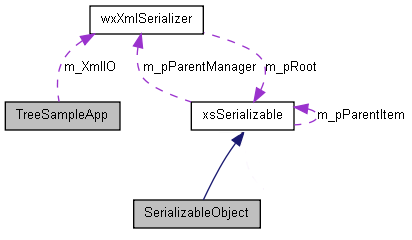

Relationships between classes in this sample:


Declaration and implementation of these classes (taken from source files TreeSample.h and TreeSample.cpp):

// SerializableObject class declaration /////////////////////////////////////////////

class SerializableObject : public xsSerializable
{
public:
        // RTTI and xsSerializable::Clone() function must be provided
        XS_DECLARE_CLONABLE_CLASS(SerializableObject);

        // constructor
        SerializableObject();
        // copy onstructor needed by default implementation of xsSerializable::Clone() function
        SerializableObject(SerializableObject &obj);
        // destructor
        virtual ~SerializableObject();

        // protected data members
        wxString m_sTreeItemName;

private:
        // private data members
        static int m_nItemCounter;
};

// SerializableObject class implementation //////////////////////////////////////////

XS_IMPLEMENT_CLONABLE_CLASS(SerializableObject, xsSerializable);

SerializableObject::SerializableObject()
{
        // initialize member data
        m_sTreeItemName.Printf(wxT("Item %d"), ++m_nItemCounter);
        // mark the data members which should be serialized
        XS_SERIALIZE(m_sTreeItemName, wxT("item_name"));
}

SerializableObject::SerializableObject(SerializableObject &obj)
{
        // initialize member data
        m_sTreeItemName = obj.m_sTreeItemName;
        // mark the data members which should be serialized
        XS_SERIALIZE(m_sTreeItemName, wxT("item_name"));
}

SerializableObject::~SerializableObject()
{
}
// TreeSampleApp class declaration //////////////////////////////////////////////////

class TreeSampleApp : public wxApp
{
public:
        virtual bool OnInit();
        virtual int OnExit();

        // main serializer object
        wxXmlSerializer m_XmlIO;
};

DECLARE_APP(TreeSampleApp);

// TreeSampleApp class implementation ///////////////////////////////////////////////

IMPLEMENT_APP(TreeSampleApp);

bool TreeSampleApp::OnInit()
{
        // load application settings if the configuration file exists, otherwise create new
        // settings class object with default values

        // initialize serializer
        m_XmlIO.SetSerializerOwner(wxT("TreeSampleApp"));
        m_XmlIO.SetSerializerRootName(wxT("tree"));
        m_XmlIO.SetSerializerVersion(wxT("1.0.0"));

        if( wxFileExists(wxT("data.xml")) )
        {
                // load tree data from configuration file (data class objects will be created at
                // run-time from the information stored in the configuration file)
                m_XmlIO.DeserializeFromXml(wxT("data.xml"));
        }

        // create and show main application frame
        MainFrame *frame = new MainFrame(NULL);
        SetTopWindow(frame);
        frame->Show();

        return true;
}

int TreeSampleApp::OnExit()
{
        // serialize tree data to given configuration file
        m_XmlIO.SerializeToXml(wxT("data.xml"));

        return 0;
}


The class MainFrame which is responsible for viewing a main application window has implemented the functions by which the tree structure can be viewed and the new objects can be added/removed to/from this tree structure.

Implementation of these functions:

MainFrame::MainFrame( wxWindow* parent )
: _MainFrame( parent )
{
        SetIcon(wxIcon(wx_xpm));

        // initialize root node
        CreateTreeRoot();

        // build the tree control content
        BuildTreeFromData();
}

void MainFrame::CreateTreeRoot()
{
        // initialize root node
        treeCtrl->AddRoot(wxT("Root"));
        // Every tree control's item holds user data container encapsulating an ID of the corespondent serializable
        // data object. Note that the root data object is created by the serializer and shouldn't be manipulated
        // direcly (but it is possible as well).
        treeCtrl->SetItemData(treeCtrl->GetRootItem(), new TreeData(wxGetApp().m_XmlIO.GetRootItem()->GetId()));
}

void MainFrame::BuildTreeFromData()
{
        // create a content of the tree control in accordance to the structure of the data objects stored in
        // the serializer
        _BuildChildren(treeCtrl->GetRootItem());
        treeCtrl->ExpandAll();
}

void MainFrame::_BuildChildren(wxTreeItemId parent)
{
        // get ID of a serializable object associated with relevant tree node
        long nId = ((TreeData*)treeCtrl->GetItemData(parent))->m_nDataId;
        // get pointer to serializable object
        xsSerializable *parentObject = wxGetApp().m_XmlIO.GetItem(nId);
        if(parentObject)
        {
            wxTreeItemId treeId;
            SerializableObject *pChild;
                // iterate through all the parent data object's items and create relevant tree control nodes
                SerializableList::compatibility_iterator node = parentObject->GetFirstChildNode();
                while(node)
                {
                    pChild = (SerializableObject*)node->GetData();
                    // create new tree control node
                    treeId = treeCtrl->AppendItem(parent, pChild->m_sTreeItemName, -1, -1, new TreeData(pChild->GetId()));
                        // create next tree level items recursively
                        _BuildChildren(treeId);

                        node = node->GetNext();
                }
        }
}

void MainFrame::OnAddClick( wxCommandEvent& WXUNUSED(event) )
{
        // This function creates new tree node as a child of currently selected tree node.
        // Hierarchical structure of data objects stored in the serializer copies the tree control's
        // nodes structure.

        // get selected tree node
        wxTreeItemId treeNode = treeCtrl->GetSelection();
        // create new serializable data object
        SerializableObject *data = new SerializableObject();
        // add new data object to the serializer at a position given by the tree structure
        // (selected tree node is a parent)
        long parentId = ((TreeData*)treeCtrl->GetItemData(treeNode))->m_nDataId;
        wxGetApp().m_XmlIO.AddItem(parentId, data);
        // create new tree node containing an ID of new data object and set it visible
        treeCtrl->EnsureVisible(treeCtrl->AppendItem(treeNode, data->m_sTreeItemName, -1, -1, new TreeData(data->GetId())));
}

void MainFrame::OnUpdateAdd( wxUpdateUIEvent& event )
{
        event.Enable(treeCtrl->GetSelection().IsOk());
}

void MainFrame::OnRemoveClick( wxCommandEvent& event )
{       wxUnusedVar(event);
        // This function removes currently selected tree node. Also relevant data object
        // in the serializer is removed.

        // get selected tree node
        wxTreeItemId treeNode = treeCtrl->GetSelection();
        if(treeNode == treeCtrl->GetRootItem())
        {
                // remove all data objects from the serializer
                wxGetApp().m_XmlIO.RemoveAll();
                // clear the tree control's content
                treeCtrl->DeleteAllItems();

                // re-create tree root
                CreateTreeRoot();
        }
        else
        {
            // get ID of a serializable object associated with relevant tree node
        long nId = ((TreeData*)treeCtrl->GetItemData(treeNode))->m_nDataId;
                // remove the data object stored in the serializer
                wxGetApp().m_XmlIO.RemoveItem(nId);
                // remove tree control node
                treeCtrl->Delete(treeNode);
        }
}

void MainFrame::OnUpdateRemove( wxUpdateUIEvent& event )
{
        event.Enable(treeCtrl->GetSelection().IsOk());
}

void MainFrame::OnOk( wxCommandEvent& event )
{       wxUnusedVar(event);
        Destroy();
}
