Simple tree sample

This sample demonstrates how to create and serialize the objects arranged in a tree structure.

The sample contains one serializable class called SerializableObject which encapsulates serialized data member m_sTextData. The data member is marked to serialize by using the universal macro XS_SERIALIZE.

The implementation of the serializable class used in this sample:

class SerializableObject : public xsSerializable
{
        // RTTI and Clone() function must be provided
        XS_DECLARE_CLONABLE_CLASS(SerializableObject);

        // constructor
        SerializableObject();
        // copy contructor must be provided for cloneability
        SerializableObject(const SerializableObject& obj);
        // destructor
        virtual ~SerializableObject() {;}

        // public data member
        wxString m_sTextData;

private:
        // private data member
        static int m_nCounter;
};

SerializableObject::SerializableObject()
{
        // initialize member data
        m_sTextData = wxString::Format( wxT("'SerializableObject' class instance No. %d"), m_nCounter++ );
        // mark the data members which should be serialized
        XS_SERIALIZE( m_sTextData, wxT("text") );
}

SerializableObject::SerializableObject(const SerializableObject& obj) : xsSerializable( obj )
{
        // initialize member data
        m_sTextData = obj.m_sTextData;
        // mark the data members which should be serialized
        XS_SERIALIZE( m_sTextData, wxT("text") );
}

// static data member
int SerializableObject::m_nCounter = 0;

// implementation of RTTI and Clone() function for serializable class
XS_IMPLEMENT_CLONABLE_CLASS( SerializableObject, xsSerializable );

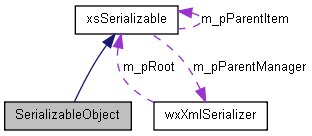

Colaborations between classes in this sample:


A tree stucture of objects in this sample is created by recurrently calling of the function xsSerializable* MakeTree which takes as the arguments the pointer to the parent object and the number of levels indicating the depth of the tree structure.

xsSerializable* MakeTree( xsSerializable *parent, int levels )
{
        if( levels > 0 )
        {
                levels--;
                // add new instances of serializable object to given parent and pass these new instances
                // as parents for recursive call of this function ( operator << returns pointer to newly
                // added object ).
                MakeTree( *parent << new SerializableObject(), levels );
                MakeTree( *parent << new SerializableObject(), levels );

                // also member function of xsSerializable class can be used for this task as follows:
                //MakeTree( parent->AddChild( new SerializableObject() ), levels );
        }

        return parent;
}

A content of the serializer is printed out by the function PrintTree:

void PrintTree( xsSerializable *parent, int level )
{
        level++;

        // iterate through children list of given parent
        SerializableList::compatibility_iterator node = parent->GetFirstChildNode();
        while( node )
        {
                SerializableObject *pObject = (SerializableObject*) node->GetData();

                // print info about current object...
                for( int i = 1; i < level; i++ ) wxPrintf( wxT(" ") );
                wxPrintf( pObject->m_sTextData << wxT("\n") );

                // .. and process the object's children if exist
                if( pObject->HasChildren() ) PrintTree( pObject, level );

                node = node->GetNext();
        }
}

The application's main body:

int main( int argc, char ** argv )
{
        // create instance of XML serializer
        wxXmlSerializer Serializer;

        // first, create set of serializable class objects and add them to the serializer

        // add root item of a tree of serializable class objects to the serializer
        Serializer << MakeTree( new SerializableObject(), 3 );

        // also member function of wxXmlSerializer class can be used for this task as follows
        // (first NULL argument means that the object is added directly to the serializer's root):
        //Serializer.AddItem( (xsSerializable*)NULL, MakeTree( new SerializableObject(), 3 ) );

        // store the serializer's content to an XML file
        Serializer.SerializeToXml( wxT("data.xml") );

        // clear the serializer's content
        Serializer.RemoveAll();

        // now, re-create list of stored class instances from XML file (data.xml)
        Serializer.DeserializeFromXml( wxT("data.xml") );

        // if you declare serializable classes as clonable ones (using XS_DECLARE_CLONABLE_CLASS, etc), then you can
        // simply copy whole serializer's content in this way (or using its copy contructor or wxXmlSerializer::CopyItems() function):
        wxXmlSerializer Serializer2 = Serializer;

        // print out info about loaded class instances
        PrintTree( Serializer2.GetRootItem(), 0 );

        // wait at application's termination
        pause;

        return 0;
}


A content of the output XML file created by this sample application:

<?xml version="1.0" encoding="utf-8"?>
<root owner="" version="">
    <object type="SerializableObject">
        <property name="id" type="long">1</property>
        <property name="text" type="string">'SerializableObject' class instance No. 0</property>
        <object type="SerializableObject">
            <property name="id" type="long">2</property>
            <property name="text" type="string">'SerializableObject' class instance No. 1</property>
            <object type="SerializableObject">
                <property name="id" type="long">4</property>
                <property name="text" type="string">'SerializableObject' class instance No. 2</property>
                <object type="SerializableObject">
                    <property name="id" type="long">6</property>
                    <property name="text" type="string">'SerializableObject' class instance No. 3</property>
                </object>
                <object type="SerializableObject">
                    <property name="id" type="long">7</property>
                    <property name="text" type="string">'SerializableObject' class instance No. 4</property>
                </object>
            </object>
            <object type="SerializableObject">
                <property name="id" type="long">5</property>
                <property name="text" type="string">'SerializableObject' class instance No. 5</property>
                <object type="SerializableObject">
                    <property name="id" type="long">8</property>
                    <property name="text" type="string">'SerializableObject' class instance No. 6</property>
                </object>
                <object type="SerializableObject">
                    <property name="id" type="long">9</property>
                    <property name="text" type="string">'SerializableObject' class instance No. 7</property>
                </object>
            </object>
        </object>
        <object type="SerializableObject">
            <property name="id" type="long">3</property>
            <property name="text" type="string">'SerializableObject' class instance No. 8</property>
            <object type="SerializableObject">
                <property name="id" type="long">10</property>
                <property name="text" type="string">'SerializableObject' class instance No. 9</property>
                <object type="SerializableObject">
                    <property name="id" type="long">12</property>
                    <property name="text" type="string">'SerializableObject' class instance No. 10</property>
                </object>
                <object type="SerializableObject">
                    <property name="id" type="long">13</property>
                    <property name="text" type="string">'SerializableObject' class instance No. 11</property>
                </object>
            </object>
            <object type="SerializableObject">
                <property name="id" type="long">11</property>
                <property name="text" type="string">'SerializableObject' class instance No. 12</property>
                <object type="SerializableObject">
                    <property name="id" type="long">14</property>
                    <property name="text" type="string">'SerializableObject' class instance No. 13</property>
                </object>
                <object type="SerializableObject">
                    <property name="id" type="long">15</property>
                    <property name="text" type="string">'SerializableObject' class instance No. 14</property>
                </object>
            </object>
        </object>
    </object>
</root>

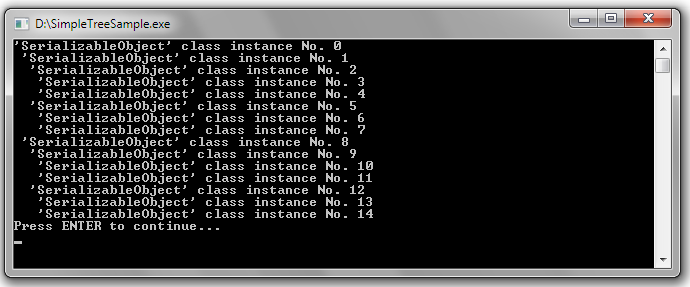

Screenshot of running application from this example:
