XmlSerializer.h File Reference

#include <wx/wx.h>
#include <wx/wxxmlserializer/PropertyIO.h>
#include <wx/xml/xml.h>
#include <wx/hashmap.h>

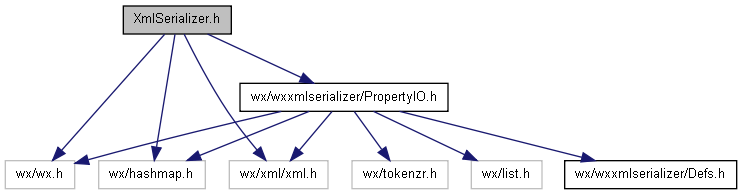

Include dependency graph for XmlSerializer.h:

Classes
class	xsSerializable
	Base class encapsulating object which can be serialized/deserialized to/from XML file (disk file or any stream). This class acts as a data container for properties (xsProperty class objects) encapsulating serialized class data members. More...
class	wxXmlSerializer
	Class encapsulates a serializable objects' manager which is responsible for handling stored serializable objects and their serialization/deserialization from/to XML files or streams. More...
class	xsProperty
	Class encapsulates a property stored in a list included inside a parent serializable object (class xsSerializable) which is serialized/deserialized to/from XML file. The property object type is defined by a string name and is processed by parent xsSerializable class object. More...
Defines
#define	xsWITH_ROOT true
#define	xsWITHOUT_ROOT false
#define	xsRECURSIVE true
#define	xsNORECURSIVE false
#define	XS_SERIALIZE_STRING(x, name) XS_SERIALIZE_PROPERTY(x, wxT("string"), name);
	Macro creates new serialized STRING property.
#define	XS_SERIALIZE_STRING_EX(x, name, def) XS_SERIALIZE_PROPERTY_EX(x, wxT("string"), name, def);
	Macro creates new serialized STRING property with defined default value.
#define	XS_SERIALIZE_CHAR(x, name) XS_SERIALIZE_PROPERTY(x, wxT("char"), name);
	Macro creates new serialized STRING property.
#define	XS_SERIALIZE_CHAR_EX(x, name, def) XS_SERIALIZE_PROPERTY_EX(x, wxT("char"), name, def);
	Macro creates new serialized STRING property with defined default value.
#define	XS_SERIALIZE_LONG(x, name) XS_SERIALIZE_PROPERTY(x, wxT("long"), name);
	Macro creates new serialized LONG property.
#define	XS_SERIALIZE_LONG_EX(x, name, def) XS_SERIALIZE_PROPERTY_EX(x, wxT("long"), name, xsLongPropIO::ToString(def));
	Macro creates new serialized LONG property with defined default value.
#define	XS_SERIALIZE_DOUBLE(x, name) XS_SERIALIZE_PROPERTY(x, wxT("double"), name);
	Macro creates new serialized DOUBLE property.
#define	XS_SERIALIZE_DOUBLE_EX(x, name, def) XS_SERIALIZE_PROPERTY_EX(x, wxT("double"), name, xsDoublePropIO::ToString(def));
	Macro creates new serialized DOUBLE property with defined default value.
#define	XS_SERIALIZE_INT(x, name) XS_SERIALIZE_PROPERTY(x, wxT("int"), name);
	Macro creates new serialized INT property.
#define	XS_SERIALIZE_INT_EX(x, name, def) XS_SERIALIZE_PROPERTY_EX(x, wxT("int"), name, xsIntPropIO::ToString(def));
	Macro creates new serialized INT property with defined default value.
#define	XS_SERIALIZE_FLOAT(x, name) XS_SERIALIZE_PROPERTY(x, wxT("float"), name);
	Macro creates new serialized FLOAT property.
#define	XS_SERIALIZE_FLOAT_EX(x, name, def) XS_SERIALIZE_PROPERTY_EX(x, wxT("float"), name, xsFloatPropIO::ToString(def));
	Macro creates new serialized FLOAT property with defined default value.
#define	XS_SERIALIZE_BOOL(x, name) XS_SERIALIZE_PROPERTY(x, wxT("bool"), name);
	Macro creates new serialized BOOL property.
#define	XS_SERIALIZE_BOOL_EX(x, name, def) XS_SERIALIZE_PROPERTY_EX(x, wxT("bool"), name, xsBoolPropIO::ToString(def));
	Macro creates new serialized BOOL property with defined default value.
#define	XS_SERIALIZE_POINT(x, name) XS_SERIALIZE_PROPERTY(x, wxT("point"), name);
	Macro creates new serialized wxPoint property.
#define	XS_SERIALIZE_POINT_EX(x, name, def) XS_SERIALIZE_PROPERTY_EX(x, wxT("point"), name, xsPointPropIO::ToString(def));
	Macro creates new serialized wxPoint property with defined default value.
#define	XS_SERIALIZE_REALPOINT(x, name) XS_SERIALIZE_PROPERTY(x, wxT("realpoint"), name);
	Macro creates new serialized wxRealPoint property.
#define	XS_SERIALIZE_REALPOINT_EX(x, name, def) XS_SERIALIZE_PROPERTY_EX(x, wxT("realpoint"), name, xsRealPointPropIO::ToString(def));
	Macro creates new serialized wxRealPoint property with defined default value.
#define	XS_SERIALIZE_SIZE(x, name) XS_SERIALIZE_PROPERTY(x, wxT("size"), name);
	Macro creates new serialized wxSize property.
#define	XS_SERIALIZE_SIZE_EX(x, name, def) XS_SERIALIZE_PROPERTY_EX(x, wxT("size"), name, xsSizePropIO::ToString(def));
	Macro creates new serialized wxSize property with defined default value.
#define	XS_SERIALIZE_COLOUR(x, name) XS_SERIALIZE_PROPERTY(x, wxT("colour"), name);
	Macro creates new serialized wxColour property.
#define	XS_SERIALIZE_COLOUR_EX(x, name, def) XS_SERIALIZE_PROPERTY_EX(x, wxT("colour"), name, xsColourPropIO::ToString(def));
	Macro creates new serialized wxColour property with defined default value.
#define	XS_SERIALIZE_PEN(x, name) XS_SERIALIZE_PROPERTY(x, wxT("pen"), name);
	Macro creates new serialized wxPen property.
#define	XS_SERIALIZE_PEN_EX(x, name, def) XS_SERIALIZE_PROPERTY_EX(x, wxT("pen"), name, xsPenPropIO::ToString(def));
	Macro creates new serialized wxPen property with defined default value.
#define	XS_SERIALIZE_BRUSH(x, name) XS_SERIALIZE_PROPERTY(x, wxT("brush"), name);
	Macro creates new serialized wxBrush property.
#define	XS_SERIALIZE_BRUSH_EX(x, name, def) XS_SERIALIZE_PROPERTY_EX(x, wxT("brush"), name, xsBrushPropIO::ToString(def));
	Macro creates new serialized wxBrush property with defined default value.
#define	XS_SERIALIZE_FONT(x, name) XS_SERIALIZE_PROPERTY(x, wxT("font"), name);
	Macro creates new serialized wxFont property.
#define	XS_SERIALIZE_FONT_EX(x, name, def) XS_SERIALIZE_PROPERTY_EX(x, wxT("font"), name, xsFontPropIO::ToString(def));
	Macro creates new serialized wxFont property with defined default value.
#define	XS_SERIALIZE_ARRAYSTRING(x, name) XS_SERIALIZE_PROPERTY(x, wxT("arraystring"), name);
	Macro creates new serialized property (type 'array of strings (wxArrayString)').
#define	XS_SERIALIZE_ARRAYCHAR(x, name) XS_SERIALIZE_PROPERTY(x, wxT("arraychar"), name);
	Macro creates new serialized property (type 'array of chars (CharArray)').
#define	XS_SERIALIZE_ARRAYINT(x, name) XS_SERIALIZE_PROPERTY(x, wxT("arrayint"), name);
	Macro creates new serialized property (type 'array of ints (IntArray)').
#define	XS_SERIALIZE_ARRAYLONG(x, name) XS_SERIALIZE_PROPERTY(x, wxT("arraylong"), name);
	Macro creates new serialized property (type 'array of longs (LongArray)').
#define	XS_SERIALIZE_ARRAYDOUBLE(x, name) XS_SERIALIZE_PROPERTY(x, wxT("arraydouble"), name);
	Macro creates new serialized property (type 'array of doubles (DoubleArray)').
#define	XS_SERIALIZE_ARRAYREALPOINT(x, name) XS_SERIALIZE_PROPERTY(x, wxT("arrayrealpoint"), name);
	Macro creates new serialized property (type 'array of wxRealPoint objects').
#define	XS_SERIALIZE_LISTREALPOINT(x, name) XS_SERIALIZE_PROPERTY(x, wxT("listrealpoint"), name);
	Macro creates new serialized property (type 'list of wxRealPoint objects').
#define	XS_SERIALIZE_MAPSTRING(x, name) XS_SERIALIZE_PROPERTY(x, wxT("mapstring"), name);
	Macro creates new serialized property (type 'string hash map (StringMap)').
#define	XS_SERIALIZE_DYNAMIC_OBJECT(x, name) XS_SERIALIZE_PROPERTY(x, wxT("serializabledynamic"), name);
	Macro creates new serialized property encapsulating a dynamic serializable object.
#define	XS_SERIALIZE_DYNAMIC_OBJECT_NO_CREATE(x, name) XS_SERIALIZE_PROPERTY(x, wxT("serializabledynamicnocreate"), name);
	Macro creates new serialized property encapsulating a dynamic serializable object.
#define	XS_SERIALIZE_STATIC_OBJECT(x, name) XS_SERIALIZE_PROPERTY(x, wxT("serializablestatic"), name);
	Macro creates new serialized property encapsulating a static serializable object.
#define	XS_SERIALIZE_PROPERTY(x, type, name) AddProperty(new xsProperty(&x, type, name));
	Macro creates new serialized property of given type.
#define	XS_SERIALIZE_PROPERTY_EX(x, type, name, def) AddProperty(new xsProperty(&x, type, name, def));
	Macro creates new serialized property of given type with defined dafult value.
#define	XS_SERIALIZE(x, name) AddProperty(new xsProperty(&x, name));
	Macro creates new serialized property and automaticaly determines its type (if supported).
#define	XS_SERIALIZE_EX(x, name, def) AddProperty(new xsProperty(&x, name, def));
	Macro creates new serialized property with defined dafult value and automaticaly determines its type (if supported).
#define	XS_REGISTER_IO_HANDLER(type, class) wxXmlSerializer::m_mapPropertyIOHandlers[type] = new class();
	Macro registers new IO handler for specified data type (handler class must exist).
#define	XS_DECLARE_CLONABLE_CLASS(name)
	Enable RTTI (the same as DECLARE_DYNAMIC_CLASS) and declare xsSerializable::Clone() function.
#define	XS_IMPLEMENT_CLONABLE_CLASS(name, base)
	Enable RTTI (the same as IMPLEMENT_DYNAMIC_CLASS) and implement xsSerializable::Clone() function.
Functions
	WX_DECLARE_LIST_WITH_DECL (xsProperty, PropertyList, class WXDLLIMPEXP_XS)
	WX_DECLARE_LIST_WITH_DECL (xsSerializable, SerializableList, class WXDLLIMPEXP_XS)
	WX_DECLARE_HASH_MAP (long, xsSerializable *, wxIntegerHash, wxIntegerEqual, IDMap)
Variables
class WXDLLIMPEXP_XS	xsProperty
class WXDLLIMPEXP_XS	xsSerializable
class WXDLLIMPEXP_XS	wxXmlSerializer

Define Documentation

#define XS_DECLARE_CLONABLE_CLASS ( name )

Value:

public: \
        DECLARE_DYNAMIC_CLASS(name) \
        virtual wxObject* Clone(); \

Enable RTTI (the same as DECLARE_DYNAMIC_CLASS) and declare xsSerializable::Clone() function.

#define XS_IMPLEMENT_CLONABLE_CLASS	(	name,
		base		)

Value:

IMPLEMENT_DYNAMIC_CLASS(name, base) \
        wxObject* name::Clone() \
        { \
                if( m_fClone ) return new name(*this); \
                else \
                        return NULL; \
        } \

Enable RTTI (the same as IMPLEMENT_DYNAMIC_CLASS) and implement xsSerializable::Clone() function.

#define XS_REGISTER_IO_HANDLER	(	type,
		class		)	wxXmlSerializer::m_mapPropertyIOHandlers[type] = new class();

Macro registers new IO handler for specified data type (handler class must exist).

#define XS_SERIALIZE	(	x,
		name		)	AddProperty(new xsProperty(&x, name));

Macro creates new serialized property and automaticaly determines its type (if supported).

#define XS_SERIALIZE_ARRAYCHAR	(	x,
		name		)	XS_SERIALIZE_PROPERTY(x, wxT("arraychar"), name);

Macro creates new serialized property (type 'array of chars (CharArray)').

#define XS_SERIALIZE_ARRAYDOUBLE	(	x,
		name		)	XS_SERIALIZE_PROPERTY(x, wxT("arraydouble"), name);

Macro creates new serialized property (type 'array of doubles (DoubleArray)').

#define XS_SERIALIZE_ARRAYINT	(	x,
		name		)	XS_SERIALIZE_PROPERTY(x, wxT("arrayint"), name);

Macro creates new serialized property (type 'array of ints (IntArray)').

#define XS_SERIALIZE_ARRAYLONG	(	x,
		name		)	XS_SERIALIZE_PROPERTY(x, wxT("arraylong"), name);

Macro creates new serialized property (type 'array of longs (LongArray)').

#define XS_SERIALIZE_ARRAYREALPOINT	(	x,
		name		)	XS_SERIALIZE_PROPERTY(x, wxT("arrayrealpoint"), name);

Macro creates new serialized property (type 'array of wxRealPoint objects').

#define XS_SERIALIZE_ARRAYSTRING	(	x,
		name		)	XS_SERIALIZE_PROPERTY(x, wxT("arraystring"), name);

Macro creates new serialized property (type 'array of strings (wxArrayString)').

#define XS_SERIALIZE_BOOL	(	x,
		name		)	XS_SERIALIZE_PROPERTY(x, wxT("bool"), name);

Macro creates new serialized BOOL property.

#define XS_SERIALIZE_BOOL_EX	(	x,
		name,
		def	)	XS_SERIALIZE_PROPERTY_EX(x, wxT("bool"), name, xsBoolPropIO::ToString(def));

Macro creates new serialized BOOL property with defined default value.

#define XS_SERIALIZE_BRUSH	(	x,
		name		)	XS_SERIALIZE_PROPERTY(x, wxT("brush"), name);

Macro creates new serialized wxBrush property.

#define XS_SERIALIZE_BRUSH_EX	(	x,
		name,
		def	)	XS_SERIALIZE_PROPERTY_EX(x, wxT("brush"), name, xsBrushPropIO::ToString(def));

Macro creates new serialized wxBrush property with defined default value.

#define XS_SERIALIZE_CHAR	(	x,
		name		)	XS_SERIALIZE_PROPERTY(x, wxT("char"), name);

Macro creates new serialized STRING property.

#define XS_SERIALIZE_CHAR_EX	(	x,
		name,
		def	)	XS_SERIALIZE_PROPERTY_EX(x, wxT("char"), name, def);

Macro creates new serialized STRING property with defined default value.

#define XS_SERIALIZE_COLOUR	(	x,
		name		)	XS_SERIALIZE_PROPERTY(x, wxT("colour"), name);

Macro creates new serialized wxColour property.

#define XS_SERIALIZE_COLOUR_EX	(	x,
		name,
		def	)	XS_SERIALIZE_PROPERTY_EX(x, wxT("colour"), name, xsColourPropIO::ToString(def));

Macro creates new serialized wxColour property with defined default value.

#define XS_SERIALIZE_DOUBLE	(	x,
		name		)	XS_SERIALIZE_PROPERTY(x, wxT("double"), name);

Macro creates new serialized DOUBLE property.

#define XS_SERIALIZE_DOUBLE_EX	(	x,
		name,
		def	)	XS_SERIALIZE_PROPERTY_EX(x, wxT("double"), name, xsDoublePropIO::ToString(def));

Macro creates new serialized DOUBLE property with defined default value.

#define XS_SERIALIZE_DYNAMIC_OBJECT	(	x,
		name		)	XS_SERIALIZE_PROPERTY(x, wxT("serializabledynamic"), name);

Macro creates new serialized property encapsulating a dynamic serializable object.

#define XS_SERIALIZE_DYNAMIC_OBJECT_NO_CREATE	(	x,
		name		)	XS_SERIALIZE_PROPERTY(x, wxT("serializabledynamicnocreate"), name);

Macro creates new serialized property encapsulating a dynamic serializable object.

#define XS_SERIALIZE_EX	(	x,
		name,
		def	)	AddProperty(new xsProperty(&x, name, def));

Macro creates new serialized property with defined dafult value and automaticaly determines its type (if supported).

#define XS_SERIALIZE_FLOAT	(	x,
		name		)	XS_SERIALIZE_PROPERTY(x, wxT("float"), name);

Macro creates new serialized FLOAT property.

#define XS_SERIALIZE_FLOAT_EX	(	x,
		name,
		def	)	XS_SERIALIZE_PROPERTY_EX(x, wxT("float"), name, xsFloatPropIO::ToString(def));

Macro creates new serialized FLOAT property with defined default value.

#define XS_SERIALIZE_FONT	(	x,
		name		)	XS_SERIALIZE_PROPERTY(x, wxT("font"), name);

Macro creates new serialized wxFont property.

#define XS_SERIALIZE_FONT_EX	(	x,
		name,
		def	)	XS_SERIALIZE_PROPERTY_EX(x, wxT("font"), name, xsFontPropIO::ToString(def));

Macro creates new serialized wxFont property with defined default value.

#define XS_SERIALIZE_INT	(	x,
		name		)	XS_SERIALIZE_PROPERTY(x, wxT("int"), name);

Macro creates new serialized INT property.

#define XS_SERIALIZE_INT_EX	(	x,
		name,
		def	)	XS_SERIALIZE_PROPERTY_EX(x, wxT("int"), name, xsIntPropIO::ToString(def));

Macro creates new serialized INT property with defined default value.

#define XS_SERIALIZE_LISTREALPOINT	(	x,
		name		)	XS_SERIALIZE_PROPERTY(x, wxT("listrealpoint"), name);

Macro creates new serialized property (type 'list of wxRealPoint objects').

#define XS_SERIALIZE_LONG	(	x,
		name		)	XS_SERIALIZE_PROPERTY(x, wxT("long"), name);

Macro creates new serialized LONG property.

#define XS_SERIALIZE_LONG_EX	(	x,
		name,
		def	)	XS_SERIALIZE_PROPERTY_EX(x, wxT("long"), name, xsLongPropIO::ToString(def));

Macro creates new serialized LONG property with defined default value.

#define XS_SERIALIZE_MAPSTRING	(	x,
		name		)	XS_SERIALIZE_PROPERTY(x, wxT("mapstring"), name);

Macro creates new serialized property (type 'string hash map (StringMap)').

#define XS_SERIALIZE_PEN	(	x,
		name		)	XS_SERIALIZE_PROPERTY(x, wxT("pen"), name);

Macro creates new serialized wxPen property.

#define XS_SERIALIZE_PEN_EX	(	x,
		name,
		def	)	XS_SERIALIZE_PROPERTY_EX(x, wxT("pen"), name, xsPenPropIO::ToString(def));

Macro creates new serialized wxPen property with defined default value.

#define XS_SERIALIZE_POINT	(	x,
		name		)	XS_SERIALIZE_PROPERTY(x, wxT("point"), name);

Macro creates new serialized wxPoint property.

#define XS_SERIALIZE_POINT_EX	(	x,
		name,
		def	)	XS_SERIALIZE_PROPERTY_EX(x, wxT("point"), name, xsPointPropIO::ToString(def));

Macro creates new serialized wxPoint property with defined default value.

#define XS_SERIALIZE_PROPERTY	(	x,
		type,
		name	)	AddProperty(new xsProperty(&x, type, name));

Macro creates new serialized property of given type.

#define XS_SERIALIZE_PROPERTY_EX	(	x,
		type,
		name,
		def	)	AddProperty(new xsProperty(&x, type, name, def));

Macro creates new serialized property of given type with defined dafult value.

#define XS_SERIALIZE_REALPOINT	(	x,
		name		)	XS_SERIALIZE_PROPERTY(x, wxT("realpoint"), name);

Macro creates new serialized wxRealPoint property.

#define XS_SERIALIZE_REALPOINT_EX	(	x,
		name,
		def	)	XS_SERIALIZE_PROPERTY_EX(x, wxT("realpoint"), name, xsRealPointPropIO::ToString(def));

Macro creates new serialized wxRealPoint property with defined default value.

#define XS_SERIALIZE_SIZE	(	x,
		name		)	XS_SERIALIZE_PROPERTY(x, wxT("size"), name);

Macro creates new serialized wxSize property.

#define XS_SERIALIZE_SIZE_EX	(	x,
		name,
		def	)	XS_SERIALIZE_PROPERTY_EX(x, wxT("size"), name, xsSizePropIO::ToString(def));

Macro creates new serialized wxSize property with defined default value.

#define XS_SERIALIZE_STATIC_OBJECT	(	x,
		name		)	XS_SERIALIZE_PROPERTY(x, wxT("serializablestatic"), name);

Macro creates new serialized property encapsulating a static serializable object.

#define XS_SERIALIZE_STRING	(	x,
		name		)	XS_SERIALIZE_PROPERTY(x, wxT("string"), name);

Macro creates new serialized STRING property.

#define XS_SERIALIZE_STRING_EX	(	x,
		name,
		def	)	XS_SERIALIZE_PROPERTY_EX(x, wxT("string"), name, def);

Macro creates new serialized STRING property with defined default value.

#define xsNORECURSIVE false

#define xsRECURSIVE true

#define xsWITH_ROOT true

#define xsWITHOUT_ROOT false

Function Documentation

WX_DECLARE_HASH_MAP	(	long	,
		xsSerializable *	,
		wxIntegerHash	,
		wxIntegerEqual	,
		IDMap
	)

WX_DECLARE_LIST_WITH_DECL	(	xsSerializable	,
		SerializableList	,
		class WXDLLIMPEXP_XS
	)

WX_DECLARE_LIST_WITH_DECL	(	xsProperty	,
		PropertyList	,
		class WXDLLIMPEXP_XS
	)

Variable Documentation

class WXDLLIMPEXP_XS wxXmlSerializer

class WXDLLIMPEXP_XS xsProperty

class WXDLLIMPEXP_XS xsSerializable

XmlSerializer.h File Reference

Classes

Defines

Functions

Variables

Define Documentation

Function Documentation

Variable Documentation
